Dental medical device
Dassym S-60-I
S-60-I dental medical device

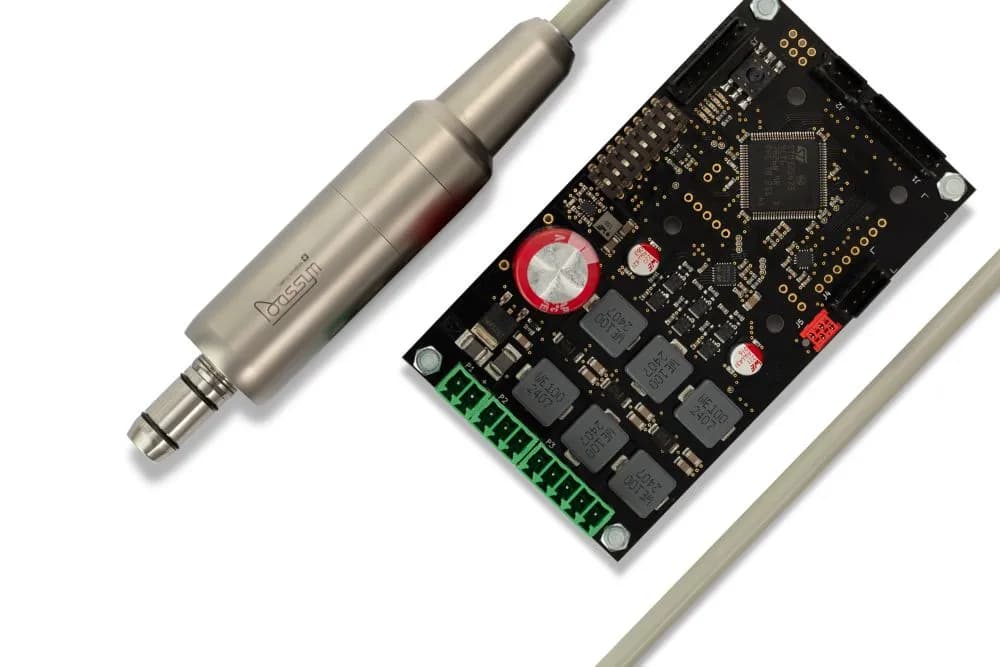

The Dassym S-60-I dental medical device combines the MO-94 micromotor component with the MB-60 closed-loop controller board and HO-05 cable connection.
Key features
Intended use: Implantology (drilling holes into bone tissue) and prophylaxis.
- Full torque from standstill
- Rocking and auto-reverse functions
- More than 75 Ncm at the tool with an appropriate 20:1 handpiece (S-60-I device / MO-94 component, not a standalone motor)
- Dassym CE Class IIa medical device under EU MDR 2017/745 (IMQ S.p.A. 0051, cert 227/MDR)
Technical overview
- Micromotor
- MO-94
- Speed range
- 0–40,000 rpm
- Maximum motor torque
- 5 Ncm
- Maximum mechanical power
- 80 W
- Driver board
- MB-60 with digital and analogue controls
- Cable connection
- HO-05, 1.6 m
UK distribution and support
Supported by Swiss Technologies
Swiss Technologies is the exclusive UK distributor and service centre for Dassym products, providing product guidance, genuine replacement components, maintenance and repair coordination.
Dassym recommends motor servicing after approximately 1,000 sterilisation cycles or three years. Ask us about your next service.
