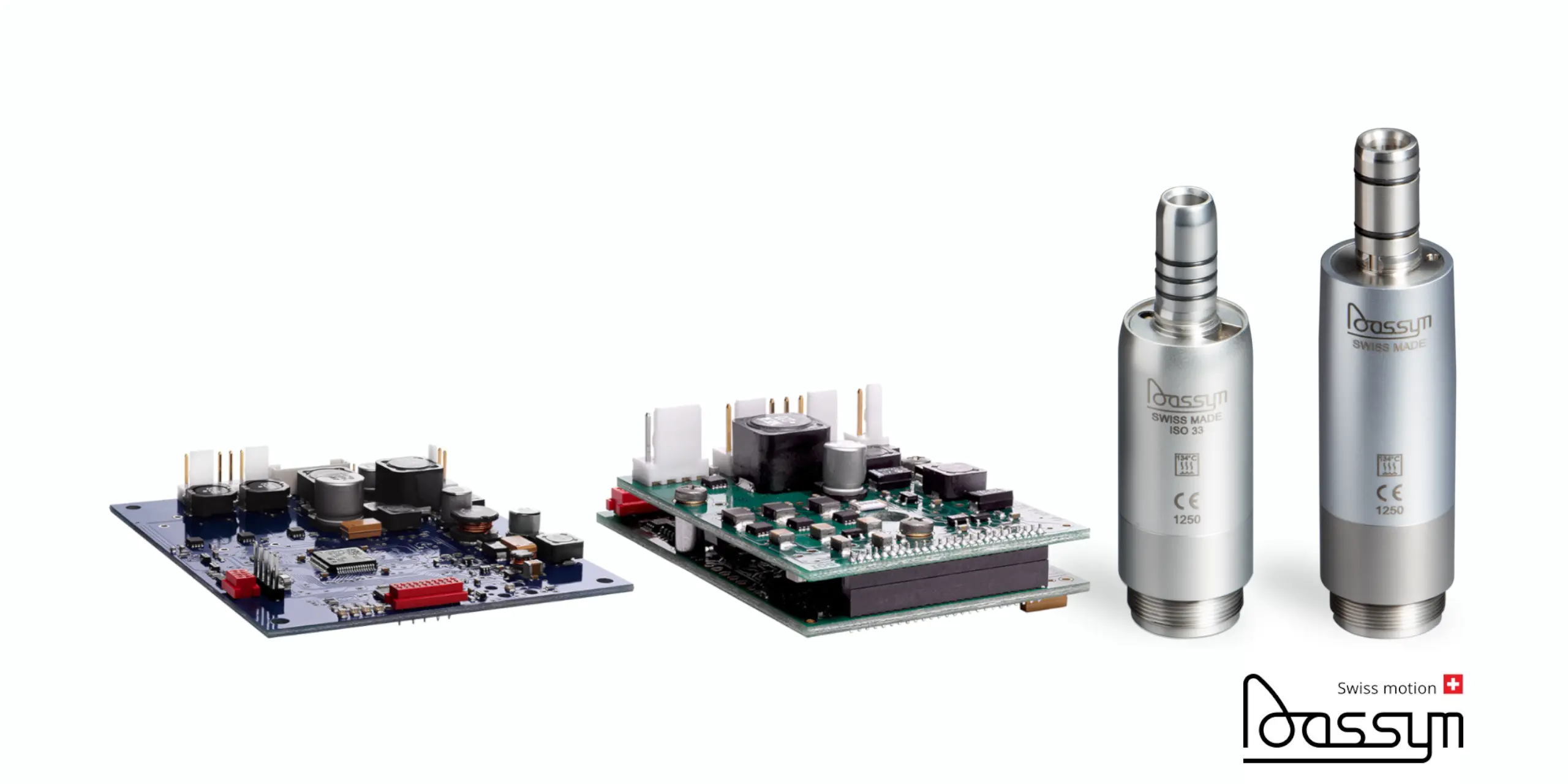

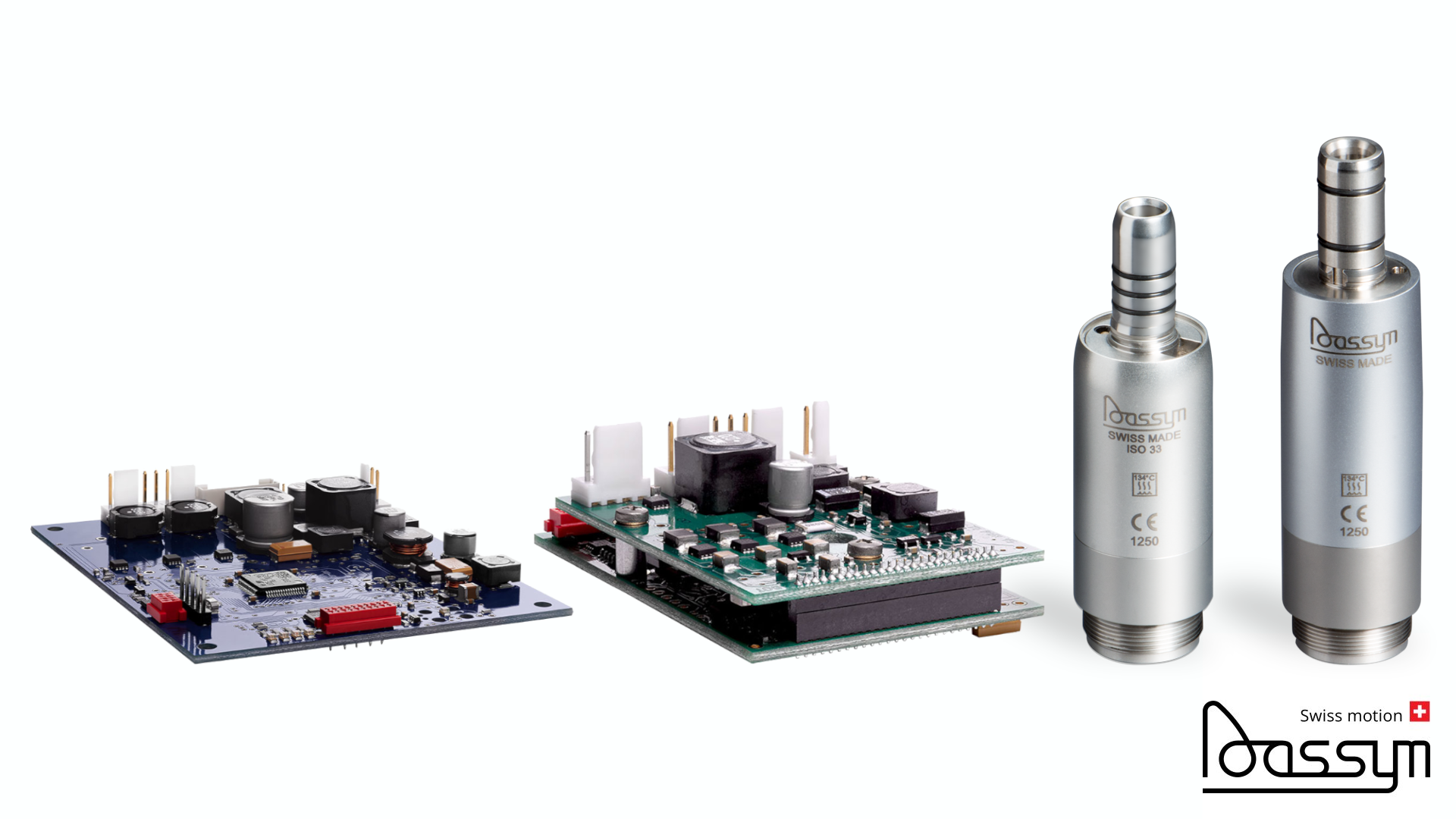

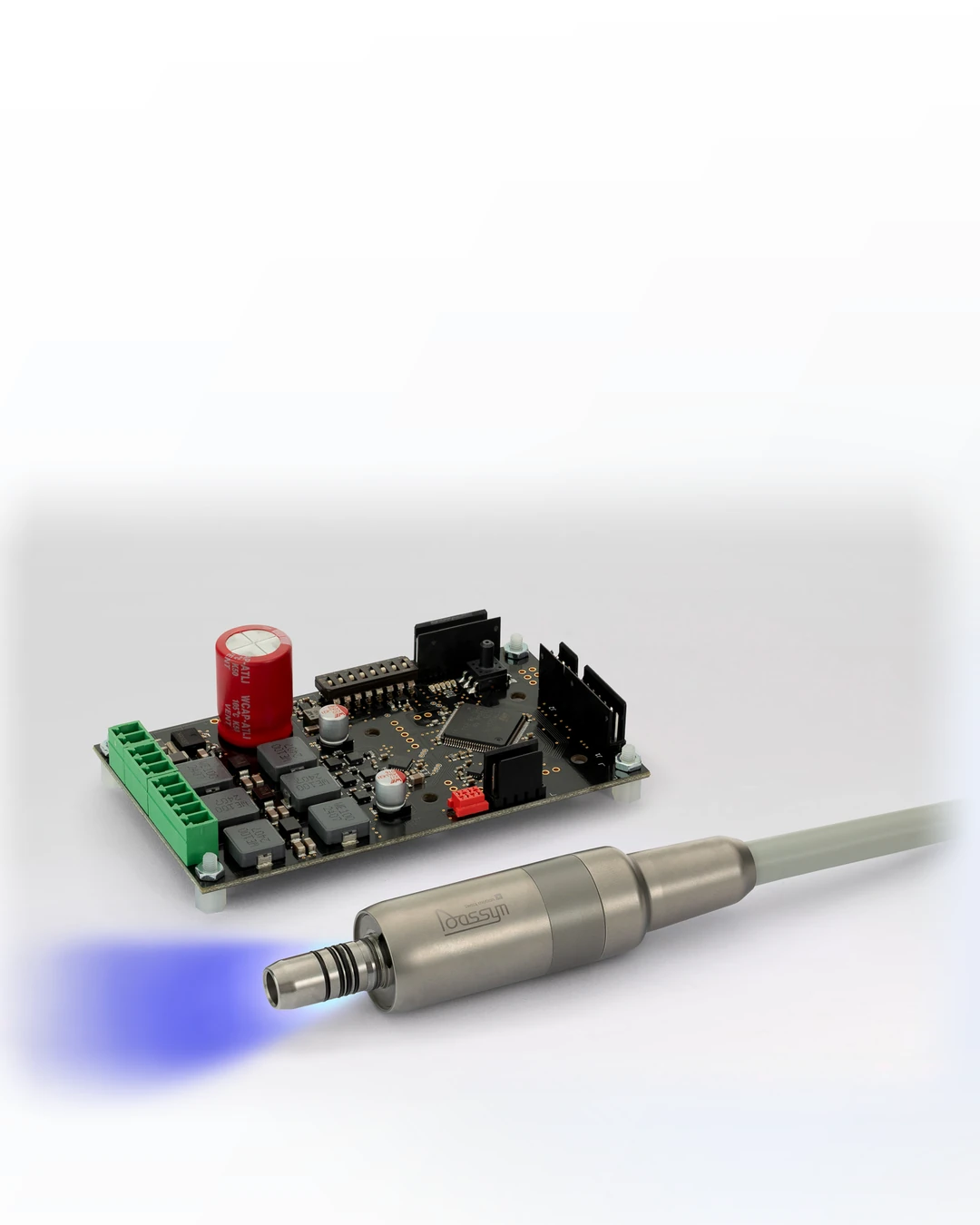

Dassym dental micromotors and circuit boards showcasing Swiss-made precision dental equipment

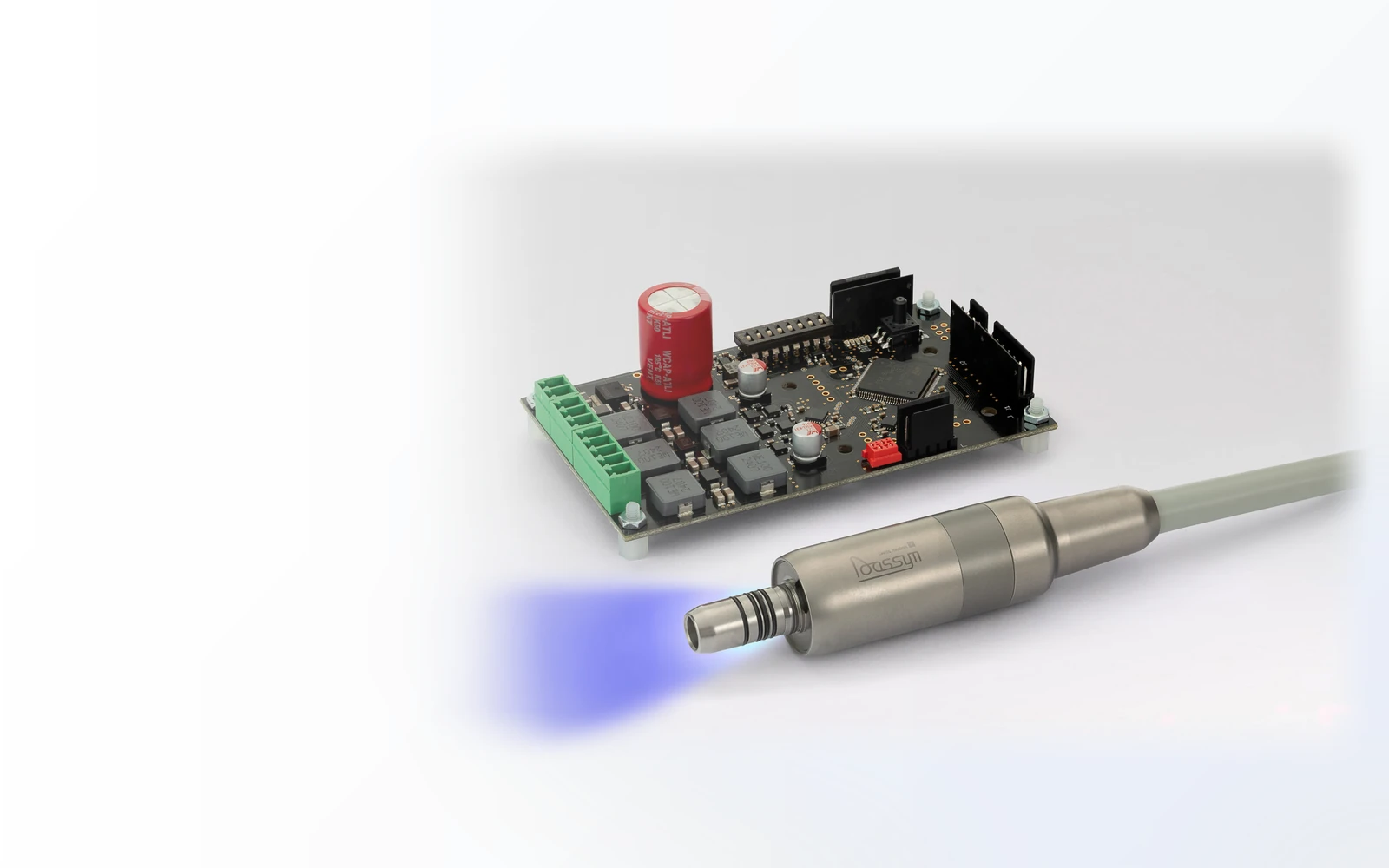

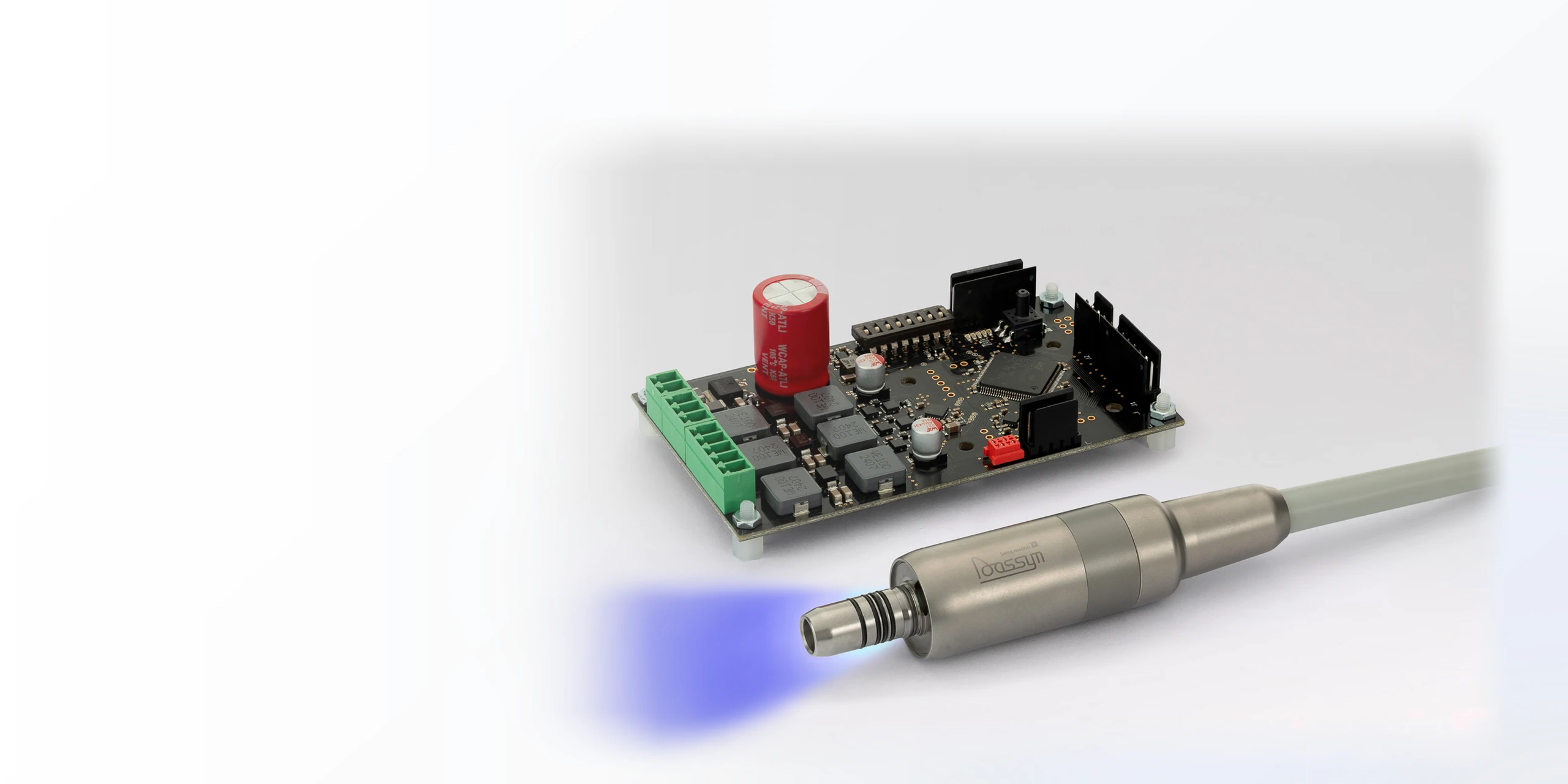

Next-Gen Precision:
Dual-LED Brushless Micromotors

Equip your practice with Swiss-engineered innovation, precision and reliability — backed by dedicated UK service and support from Swiss Technologies

Compare Models Get in Touch

Modern Dental Solutions with Swiss Technologies

Swiss Technologies Ltd is the exclusive UK distributor of Dassym SA — a leading Swiss manufacturer of dental medical devices and micromotors. We provide advanced equipment for dental treatment applications, backed by expert UK-based support and repair services.

Micromotors and boards come with a 3-year manufacturer's warranty while hoses come with a 2-year warranty.

Dassym Medical Devices

Reliability, Precision, and Performance

The S-60 and S-60-I combine a brushless micromotor with their single or innovative dual blue/white LED lighting, driver board, and hose connection to power your straight and contra-angle handpieces.

Devices are CE-marked Class IIa medical devices, certified under EU MDR 2017/745.

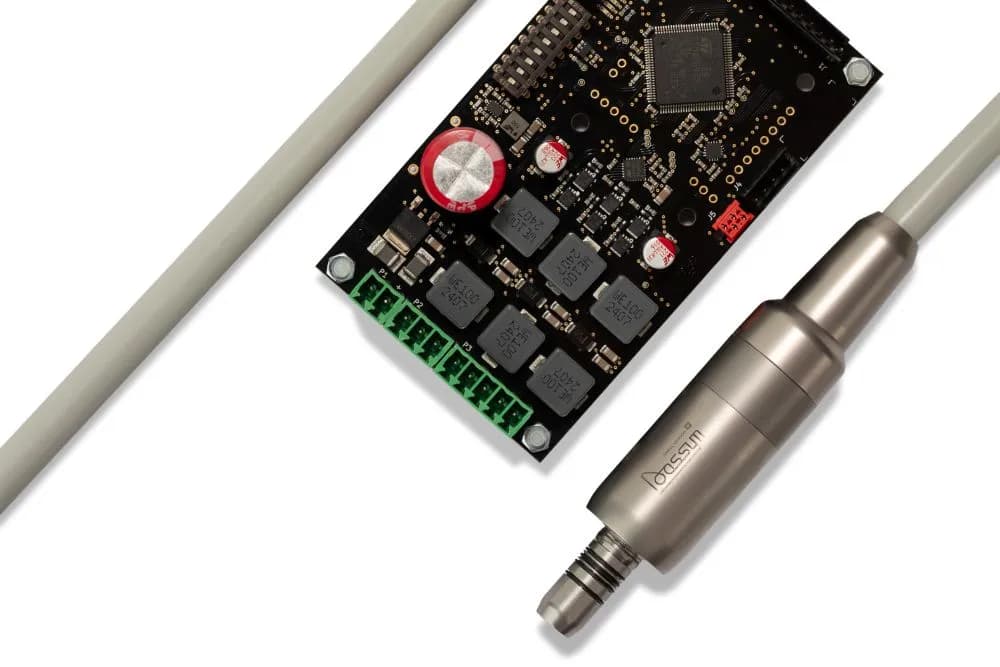

S-60

CE Certified

For General Dentistry, Prophylaxis & Endodontics

Drives your straight and contra-angle handpieces for everyday procedures. Choose the MO-33 or MO-93 brushless micromotor in either variant: 2LFA (dual white + blue LED) or LFA (white LED only). Both deliver speeds up to 0-40,000 rpm with 3.5 Ncm torque and 60 W power.

Device components:

MO-33/MO-93 brushless micromotor (60 W power, 3.5 Ncm)
MB-60 driver board with digital & analog controls
HO-35 hose connection (1.8m with air/water tubing)

View Documentation

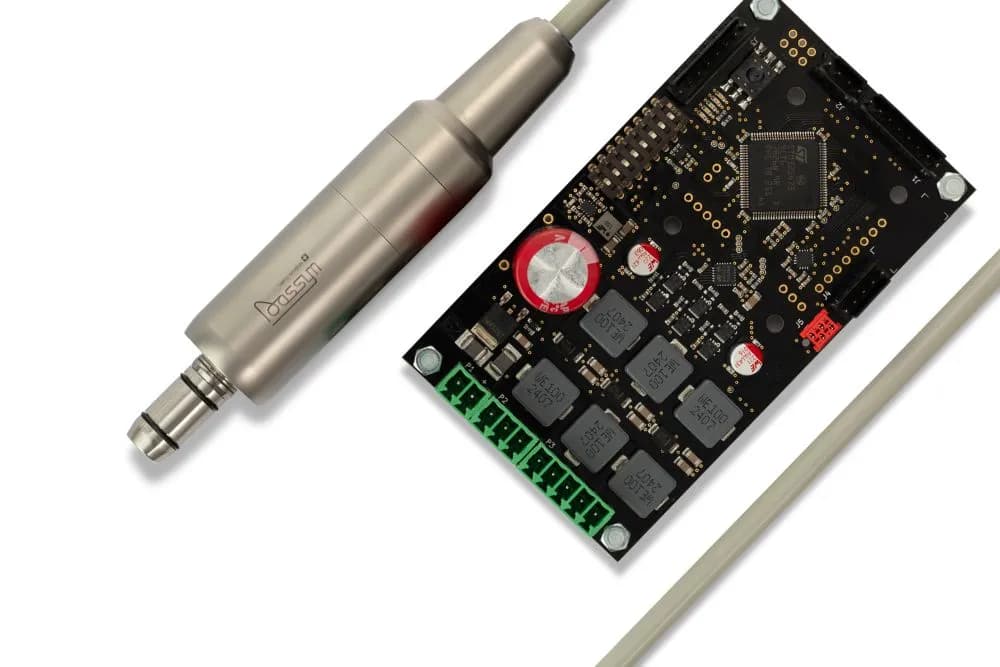

S-60-I

CE Certified

For Implant Placement & Surgical Applications

Built for surgical precision, the MO-94 micromotor delivers 5 Ncm torque and 80 W power, with the MB-60 closed-loop drive providing strong low-speed torque - over 75 Ncm at the tool with a 20:1 handpiece.

Device components:

MO-94 high-torque micromotor (80 W power, 5 Ncm)
MB-60 driver board with digital & analog controls
HO-05 cable connection (1.6m, optional unit-side connector for sterilization)

View Documentation

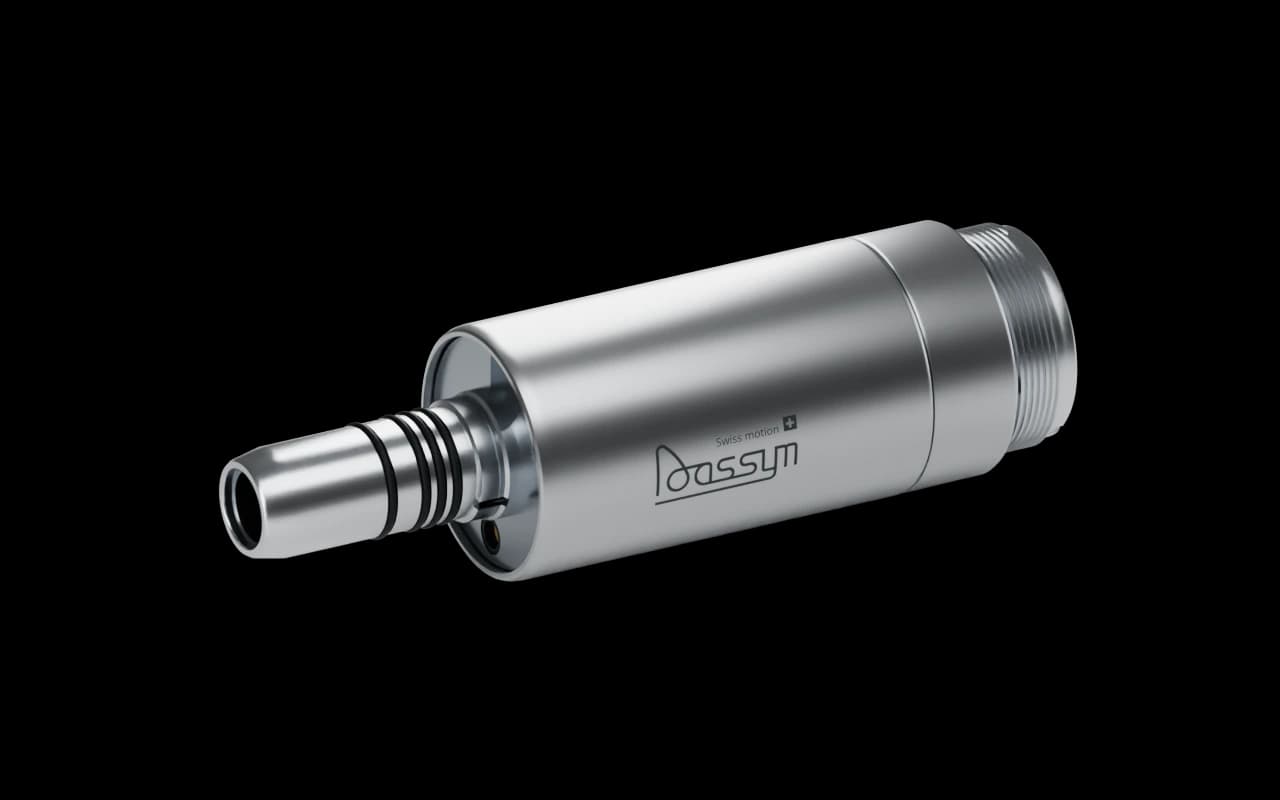

Dassym Micromotors

Get To Know Your Motor

Each Dassym micromotor is engineered to excel in specific clinical applications.

Part of S-60 medical device

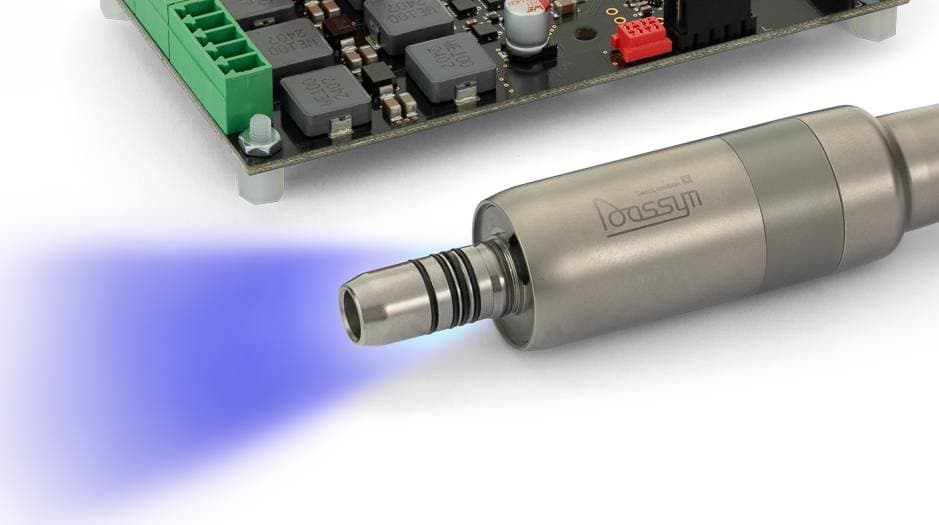

MO-33-2LFA

General Dentistry

Select model:

Dual LED (white + blue)3.5 Ncm0-40,000 rpmAir cooling

View Documentation

Part of S-60 medical device

MO-93-2LFA

Advanced Dentistry

Select model:

Dual LED (white + blue)3.5 Ncm0-40,000 rpmFull torque from standstillRocking / Auto-reverse

View Documentation

Part of S-60-I medical device

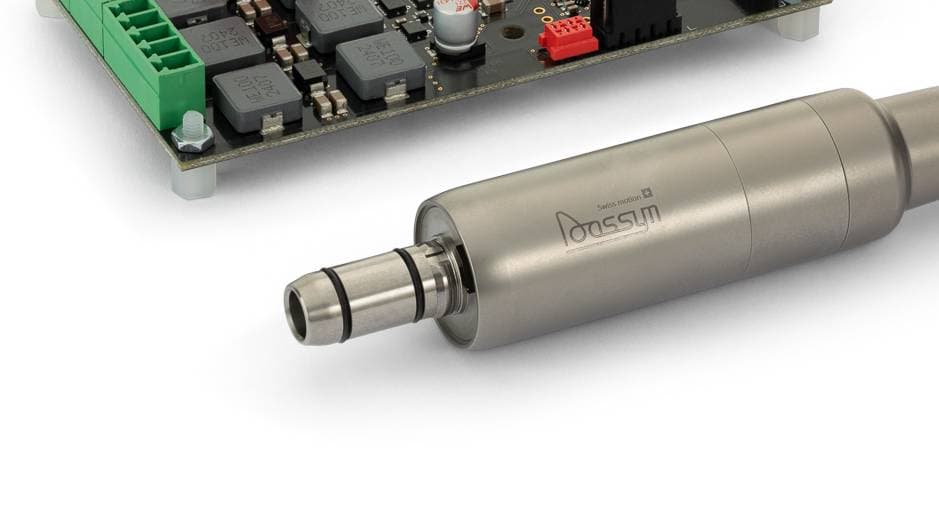

MO-94-LA

Implantology

White LED lighting5 Ncm0-40,000 rpmFull torque from standstillRocking / Auto-reverse

View Documentation

Compare Dassym Micromotors

Find the right Dassym micromotor for your practice.

Part of S-60 medical device

MO-33

Intended Use

General Dentistry, Prophylaxis, Endodontics

Speed Range

0-40,000 rpm

Max Torque

3.5 Ncm

Max Power

60 W (mech)

Motor Length (excluding coupling)

45 mm

Motor Max Diameter

21.8 mm

Cooling Air Pressure

300 kPa (nominal)

Cooling Air Flow Consumption

< 40 Nl/min

Cooling Air Flow at Nozzle

> 5 Nl/min

Spray Air Flow at 250 kPa

> 1.5 Nl/min

Spray Water Flow at 250 kPa

> 50 ml/min

Air Cooling

Motor & handpiece air cooling

Rocking / Auto-Reverse

Coupling Standard

ISO 3964 / INTRAmatic Lux (R)

Sterilizable Without Protection

Yes

Full Torque from Standstill

Dual LED model available

Yes

Part of S-60 medical device

MO-93

Intended Use

General Dentistry, Prophylaxis, Endodontics

Speed Range

0-40,000 rpm

Max Torque

3.5 Ncm

Max Power

60 W (mech)

Motor Length (excluding coupling)

45 mm

Motor Max Diameter

21.8 mm

Cooling Air Pressure

300 kPa (nominal)

Cooling Air Flow Consumption

< 40 Nl/min

Cooling Air Flow at Nozzle

> 5 Nl/min

Spray Air Flow at 250 kPa

> 1.5 Nl/min

Spray Water Flow at 250 kPa

> 50 ml/min

Air Cooling

Motor & handpiece air cooling

Rocking / Auto-Reverse

Yes

Coupling Standard

ISO 3964 / INTRAmatic Lux (R)

Sterilizable Without Protection

Yes

Full Torque from Standstill

Yes

Dual LED model available

Yes

Part of S-60-I medical device

MO-94

Intended Use

Implantology, Prophylaxis

Speed Range

0-40,000 rpm

Max Torque

5 Ncm

Max Power

80 W (mech)

Motor Length (excluding coupling)

61 mm

Motor Max Diameter

21.8 mm

Cooling Air Pressure

300 kPa (optional)

Cooling Air Flow Consumption

< 40 Nl/min

Cooling Air Flow at Nozzle

> 5 Nl/min

Spray Air Flow at 250 kPa

Not specified

Spray Water Flow at 250 kPa

Not specified

Air Cooling

Optional motor air cooling

Rocking / Auto-Reverse

Yes

Coupling Standard

ISO 3964 / INTRAmatic Lux (R)

Sterilizable Without Protection

Yes

Full Torque from Standstill

Yes

Dual LED model available

Feature	Part of S-60 medical deviceMO-33	Part of S-60 medical deviceMO-93	Part of S-60-I medical deviceMO-94
Intended Use	General Dentistry, Prophylaxis, Endodontics	General Dentistry, Prophylaxis, Endodontics	Implantology, Prophylaxis
Speed Range	0-40,000 rpm	0-40,000 rpm	0-40,000 rpm
Max Torque	3.5 Ncm	3.5 Ncm	5 Ncm
Max Power	60 W (mech)	60 W (mech)	80 W (mech)
Motor Length (excluding coupling)	45 mm	45 mm	61 mm
Motor Max Diameter	21.8 mm	21.8 mm	21.8 mm
Cooling Air Pressure	300 kPa (nominal)	300 kPa (nominal)	300 kPa (optional)
Cooling Air Flow Consumption	< 40 Nl/min	< 40 Nl/min	< 40 Nl/min
Cooling Air Flow at Nozzle	> 5 Nl/min	> 5 Nl/min	> 5 Nl/min
Spray Air Flow at 250 kPa	> 1.5 Nl/min	> 1.5 Nl/min	Not specified
Spray Water Flow at 250 kPa	> 50 ml/min	> 50 ml/min	Not specified
Air Cooling	Motor & handpiece air cooling	Motor & handpiece air cooling	Optional motor air cooling
Rocking / Auto-Reverse	No	Yes	Yes
Coupling Standard	ISO 3964 / INTRAmatic Lux (R)	ISO 3964 / INTRAmatic Lux (R)	ISO 3964 / INTRAmatic Lux (R)
Sterilizable Without Protection	Yes	Yes	Yes
Full Torque from Standstill	No	Yes	Yes
Dual LED model available	Yes	Yes	No

UK Service Centre

Expert Maintenance & Repair

Our UK-based service centre provides professional maintenance and repair services for Dassym products. With trained technicians and genuine parts, we keep your equipment performing at its best.

Micromotor Repairs

Expert repair services for all Dassym products.

Preventive Maintenance

Regular service plans to keep your equipment running smoothly for longer.

Rapid Turnaround

Use our prepaid servicing box to post your devices and get them back quickly to minimise downtime.

Warranty & Out-of-Warranty Services

Full support for warranty and out-of-warranty repairs using genuine Dassym parts.

We’re Bringing Next-Generation Swiss Dental Equipment to the UK

We're not live yet - We're preparing our range of Dassym products including precision micromotors and complete medical device systems for your practice.

Leave your email below and we'll notify you when we launch, or get in touch today with any questions.

Prefer to speak with someone? Contact our team.
